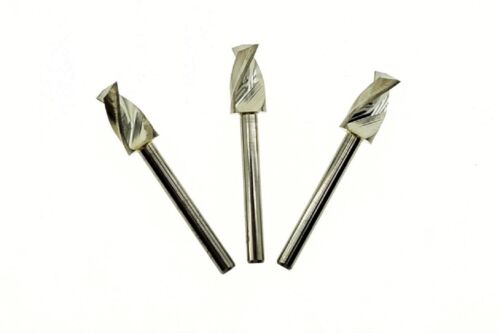

3qty 6.5mm End Mill Router Bit FR4 CNC Spiral 2 Flute 1/8" Shank
High Performance Router Bits Up Cut For FR4 circuit boards, wood and alluminum for pocketing, cutouts, routing groove-making precision shapes and holes on a Milling or Turning machine and drilling 2-Flute allows maximum space for chip ejection.
Condition:Brand New
Quantity: 3 as pictured
Japanese made carbide coated
Information:
- 1/8" Shank
- 1 1/2" Overall Length
- 1/2" Flute Length
- Carbide coated high speed capable
- For CNC, Wood, and Alluminum Cutting
- Up-Cut/Flat Bottom style
Carbide- This tool material combines increased stiffness with the ability to operate at higher SFPM.Carbide tools are best suited for shops operating newer milling machines or machines with minimal spindle wear. Rigidity is critical when using carbide tools.Carbide end mills may require a premium price over the cobalt end mills, but they can also be run at speeds 2 1/2 faster than HSS end mills.For best results mount in a hydraulic type holder.
| Item Specifics | |
| Brand | daewon industries |
| Country/Region of Manufacture | Japan |
| Material | carbide |
| Model | N/a |
| MPN | Does Not Apply |
| UPC | 700424791965 |
| Coating | Tungsten |
| Cutting Diameter | 6.5 |
| End Type | Single End |
| Flutes | 2-flute |
| Helix Angle | Variable |
| Overall Length | 1-1/2in. |
| Quantity | 3 |
| Shank Diameter | 1/8in. |
